A major step towards fusion power

13th June 2012

Imagine a world without climate change, energy crunches or reliance on foreign oil. It may sound like an impossible dream, but engineers at the University of Tennessee have taken a giant step towards making this scenario a reality.

Researchers there have successfully developed a key technology in developing an experimental reactor that can demonstrate the feasibility of fusion energy for the grid. Nuclear fusion holds the promise of a clean, safe and abundant supply of energy for decades and centuries to come.

Professors David Irick, Madhu Madhukar and Masood Parang are engaged in a project involving the United States, five other nations, and the European Union, known as ITER. This week, they completed a critical step for the project, by successfully testing a component that will insulate and stabilise the central solenoid — the reactor's backbone.

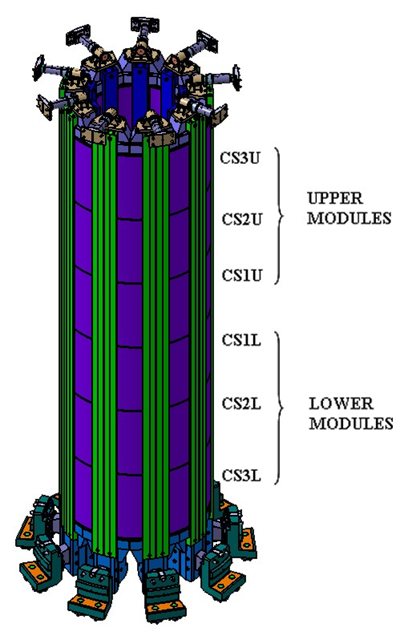

ITER solenoid



ITER is building a fusion reactor that aims to produce 10 times the amount of energy that it uses. The facility is now under construction near Cadarache, France, and will begin operations in 2019.

"The goal of ITER is to help bring fusion power to the commercial market," Madhukar said. "Fusion power is safer and more efficient than nuclear fission power. There is no danger of runaway reactions like what happened in nuclear fission reactions in Japan and Chernobyl, and there is little radioactive waste." Unlike today's nuclear fission reactors, fusion uses a similar process as that which powers the sun.

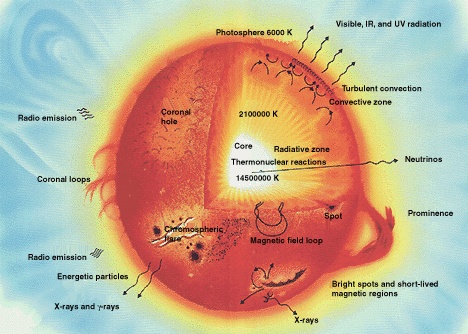

sun core fusion



Since 2008, engineering professors and students have worked inside UT's Magnet Development Laboratory (MDL) to develop technology that serves to insulate and provide structural integrity to the more than 1,000 ton central solenoid.

A tokamak reactor uses magnetic fields to confine the plasma — a hot, electrically charged gas that serves as the reactor fuel — into the shape of a torus. The central solenoid, which consists of six giant coils stacked on top of one another, plays the starring role by both igniting and steering the plasma current.

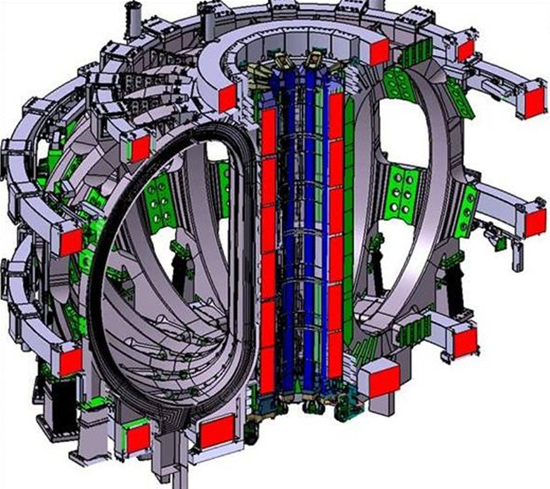

iter reactor core



The key to unlocking the technology was finding the right material — a glass fiber and epoxy chemical mixture that is liquid at high temperatures and turns hard when cured — and the right process of inserting this material into all of the necessary spaces inside the central solenoid. The special mixture provides electrical insulation and strength to the heavy structure. The impregnation process moves the material at the right pace, factoring in temperature, pressure, vacuum and the material's flow rate.

This week, the UT team tested the technology inside its mockup of the central solenoid conductor.

"During the epoxy impregnation, we were in a race against time," said Madhukar. "With the epoxy, we have these competing parameters. The higher the temperature, the lower the viscosity; but at the same time, the higher the temperature, the shorter the working life of the epoxy."

It took two years to develop, more than two days to impregnate the central solenoid mockup and multiple pairs of watchful eyes to ensure everything went according to plan.

It did.

This summer, the team's technology will be transferred to US ITER industry partner General Atomics in San Diego, which will build the central solenoid and ship it to France.
